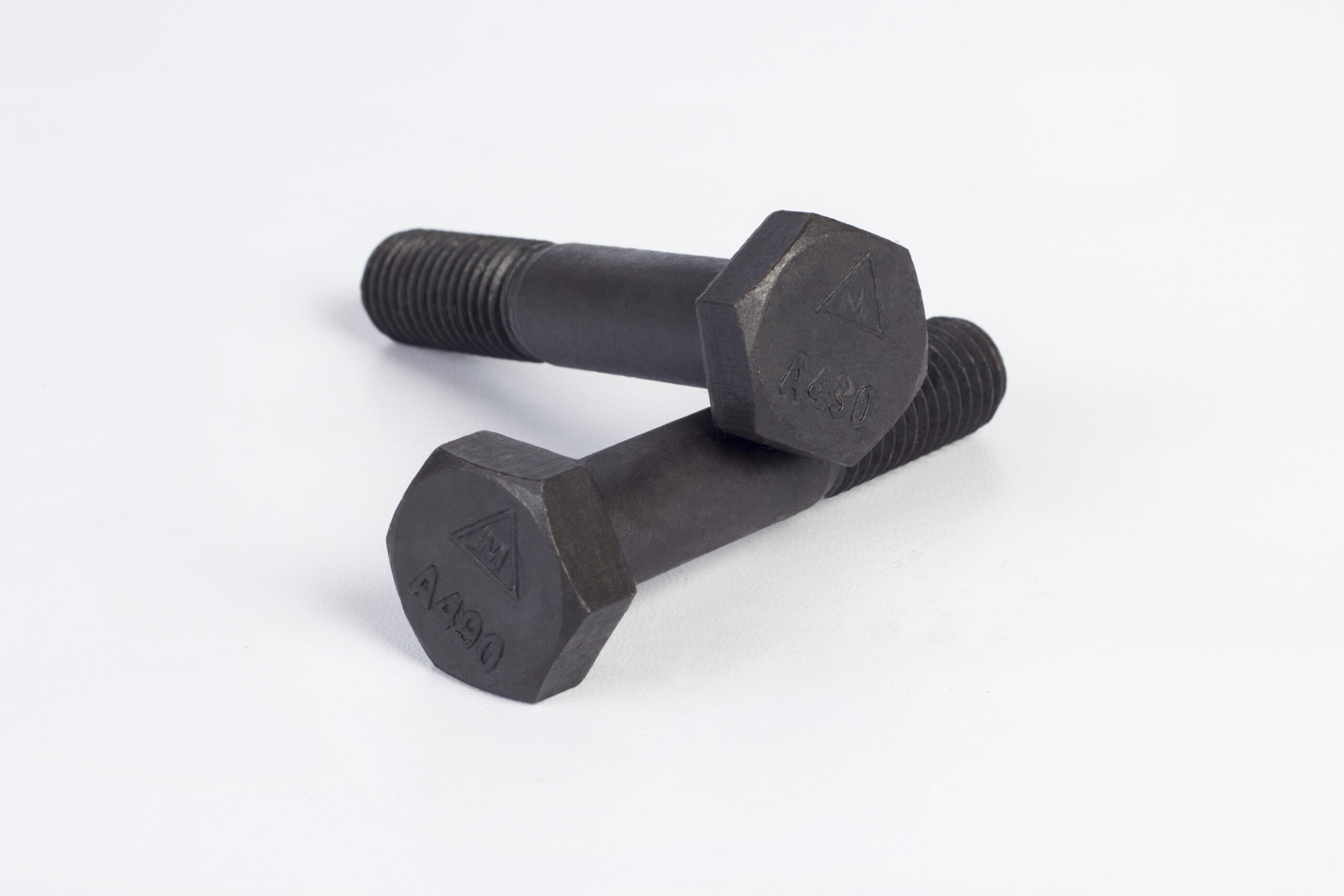

A490 and A490M Heavy Hex Structural Bolt – ASTM F3125/F3125M
The A490 and A490M heavy hex bolt is used in structural steel connections. ASTM F3125/F3125M contains the current requirements for this grade. Its head and thread length are designed for use within a structural assembly with compatible nuts and washers.
Download the technical data sheet on this page and request information through our quotation form or contact MODEPSA.
- Fabricacion nacional con control de calidad.
- Disponible segun medidas y requerimiento del cliente.
- Aplicaciones industriales, mineria, construccion y metalmecanica.
The A490 and A490M structural bolt is manufactured from heat-treated alloy steel to join steel plates and sections. It offers higher tensile strength than grade A325; its selection and coating must follow the project specification. The A490 and A490M designations identify the inch and metric series, respectively.
Technical features
ASTM F3125/F3125M: inch-series A490 specifies 150–173 ksi tensile strength; metric A490M specifies 1040–1210 MPa. These values are not allowable joint loads. ASME B18.2.6 is the inch-series dimensional reference. Nuts, washers and coating must meet the specified assembly requirements.
Applications and assembly
Used in snug-tightened or pretensioned joints according to the design. Installation method and inspection determine how the connection is verified. Surface finish affects lubrication and assembly behavior during tightening.
Download the technical data sheet for further details. Specify diameter, length, finish and required quantity. Send your inquiry through our quotation form or contact MODEPSA.
