PRODUCTO INDUSTRIAL

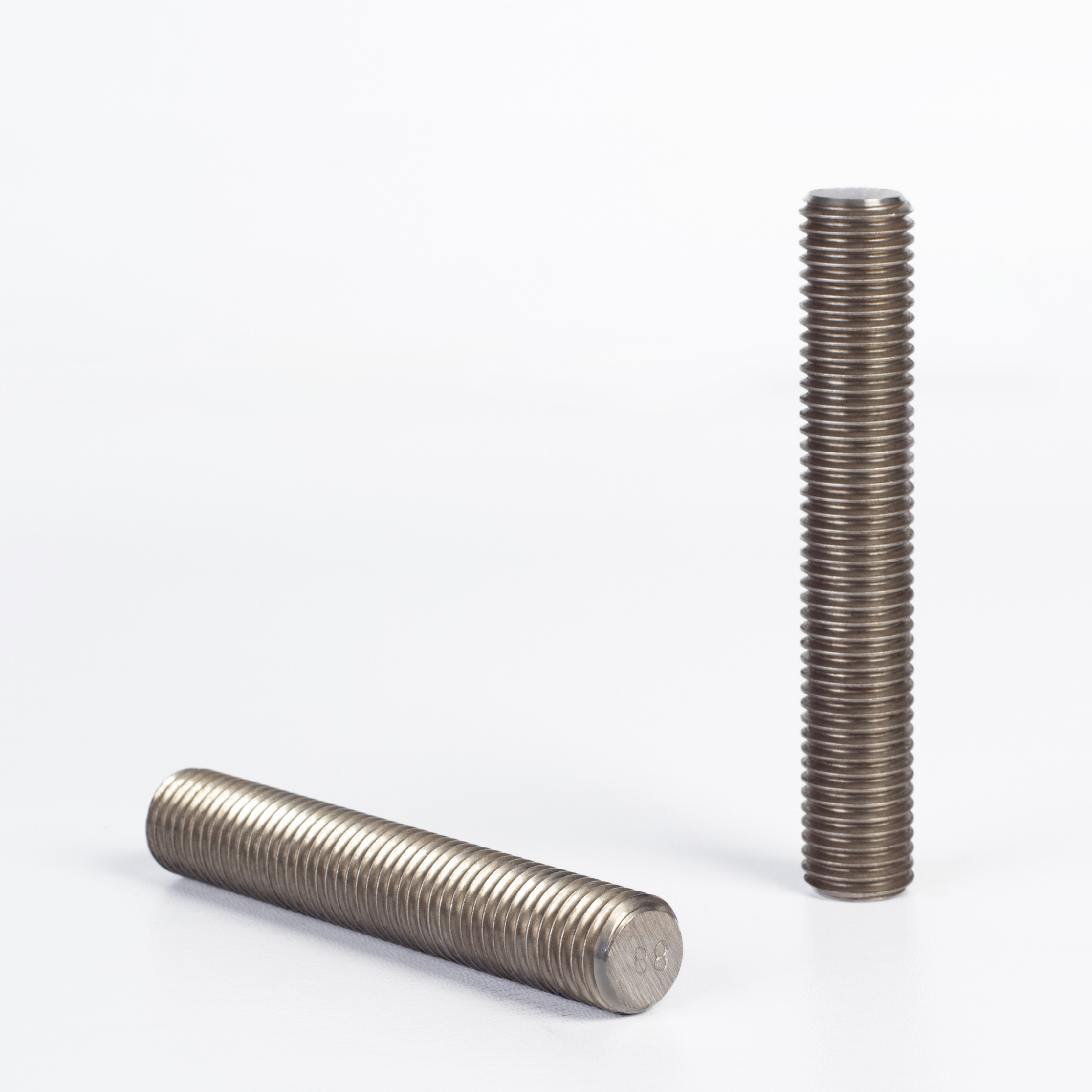

Grade B8M Stainless Steel Threaded Rod – ASTM A193
ASTM A193 grade B8M threaded rod is made from molybdenum-bearing type 316 austenitic stainless steel. It provides fastening material for flanges, equipment and industrial assemblies, with ASTM A194 grade 8M nuts where required by the assembly specification.
Download the technical data sheet on this page and request information through our quotation form or contact MODEPSA.
- Fabricacion nacional con control de calidad.
- Disponible segun medidas y requerimiento del cliente.
- Aplicaciones industriales, mineria, construccion y metalmecanica.
Grade B8M threaded rod has continuous threading and may be supplied in lengths for cutting. It can be used to prepare studs that pass through a joint and are secured with nuts at both ends.
Technical features
ASTM A193 B8M identifies 316 stainless steel. Class 1 has minimum tensile and yield strengths of 75 and 30 ksi. For strain-hardened class 2 up to ¾-inch diameter, the minima are 110 and 95 ksi. These differ from B8 class 2 values. Inch threads follow ASME B1.1.
Applications and assembly
Molybdenum improves resistance to pitting corrosion compared with type 304; chloride concentration and temperature remain selection factors. ASTM A194 grade 8M nuts are a common pairing, subject to class and service requirements. Cut ends should be deburred so nuts can be installed without damaging the threads.
Download the technical data sheet for further details. Specify dimensions, quantity and your application. Send your inquiry through our quotation form or contact MODEPSA.
